JWEI SG series High-Precision Flatbed Cutters Systems, newly launched in 2025 as a flagship model, combines striking aesthetics with robust performance. While maintaining industry-leading cutting precision, it incorporates multiple technological innovations to become a premium essential flatbed cutter systems that excels in design, functionality, and cost effectiveness. Its modular design ensures universal applicability across diverse industries, while versatile functional configurations make it a truly versatile all-rounder.
☷
High Speed
Equipped with a self-developed embedded M7 EtherCAT version, the motion control cycle is reduced to just 0.0001 seconds, achieving cutting speeds of up to 2 meters per second.
☷
High-precision
Enhanced small circle cutting accuracy down to 1mm diameter level, utilizing a high-precision, 3-arc-minute gear reducer for ultra-precise CNC cutting; ensures consistent processing quality even for large-volume products, resulting in higher uniformity of finished parts.
☷
High Density
Designed for high-density foam materials, enabling high-precision cutting of display stands, embossing, and slotting. Suitable for intricate, irregular shapes and high-quality materials, it breaks through traditional production limitations.
☷
Multiple processes
Featuring a three-head design that integrates a 1.8KW milling spindle and interchangeable tools for flexible selection. Supports a wide range of processes including cutting, milling, chamfering, creasing, and grooving, allowing versatile combinations to handle diverse product types and achieve various processing effects.
☷
Automatic Tool Change
Automatic Tool Change and Automatic Bit Chane, enables effortless use of various tools and blades. Easily meets customization needs—milling, polishing, chamfering all completed in one go. A wide range of cutting processes at your fingertips.
☷
Precision and Stability
With a self-developed anti-vibration optimization algorithm, modular integrated machine body, and precision-ground transmission system, the suction power is enhanced by over three times—everything is designed to ensure more accurate cutting.
☷
Fully Automatic Tool Setting
Equipped with fully automatic tool calibration, it easily adjusts cutting depth —ensuring more precise cuts without damaging the worktable and delivering cleaner, more refined creases.
Application Scenarios
JWEI SG series Flatbed Cutting Systems are suitable for cutting a wide range of advertising materials in both sheet and roll form. Paired with intelligent, all-in-one cutting solutions, that offer a material database compatibility. Common advertising materials such as KT board, car wraps, self-adhesive vinyl, acrylic, and soft magnetic sheets can all be cut with precision and ease.

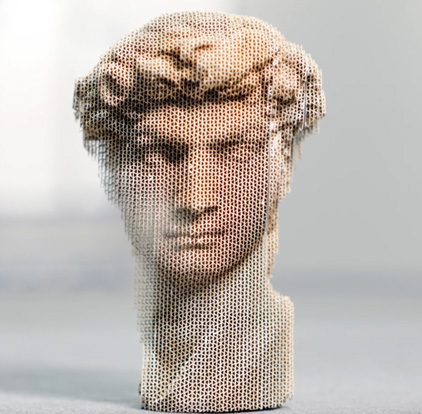

The Human Statue made of Corrugated board

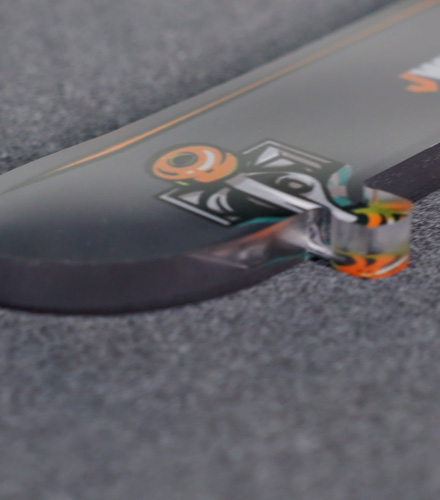

15mm-Acrylic-board

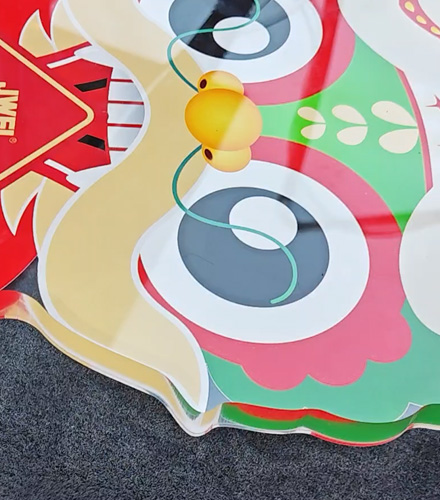

20mm-Acrylic-board

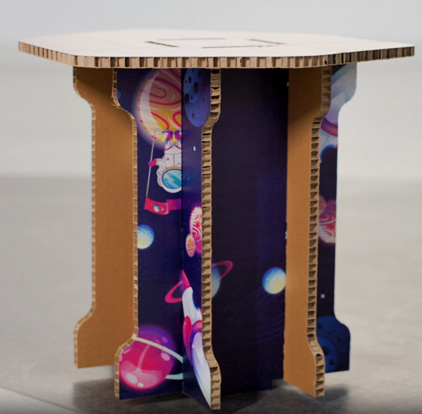

The Chair made of Honeycomb board
Features
Recommended Configuration
Electric oscillating Tool
Equipped with a built-in high-frequency Maxon motor reaching speeds of up to 18,000 RPM and specially designed tungsten steel hardened blades, it effortlessly handles cutting of tougher and thicker materials—such as corrugated board, honeycomb board, KT board, and PVC foam board—with high speed and clean, smooth edges.
Universal Cutting Tool
Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.
Ethernet Transmission Port
Data transmission is flexible and stable, with enhanced automation scalability; it supports remote upgrades and maintenance, as well as machine control and file access within a local area network (LAN).
Kiss-cut tool
Specifically designed for kiss-cutting of materials such as self-adhesive vinyl and printed advertising back adhesive films. Paired with a high-precision camera positioning system, it enables effortless cutting of even the most complex contour shapes.
Safety Protection
The safety collision design is simple and elegant, featuring an internal infrared light grid device that is highly responsive, ensuring the personal safety of operators and the secure operation of the machine.
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.
Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
Parametera
Description
Model
SG1625
SG1612
SG1635
Tool head
2 Tool heads
3 Tool heads
2 Tool heads
3 Tool heads
2 Tool heads
3 Tool heads
Multi-functional Tool Head
Multi-functional Tool Head Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing, drawing, router and other functions in one, optional ATC module
Tools
Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools, etc.
Fastest speed
2000mm/s *
Max. Cutting Thickness
50mm *
Repeat Precision
＜0.05mm *
Cutting Materials
ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc.
