JWEI SG1625 Flatbed Cutter features a plug-in, triple-head system, allowing flexible combination and quick swapping of the oscillating tool, creasing wheel, and V-cut tool. It enables simultaneous operation of three tools for one-pass forming of cartons and boxes. With cutting speeds up to 2000 mm/s and excellent performance on circular cuts as small as 1 mm in diameter, it offers a one-piece tabletop with six zoned vacuum areas, synchronized cutting and collection—ensuring high efficiency and speed.
☷
Automatic Tool Change
Automatic tool change enables effortless switching between various tools and cutting blades, swiftly meeting customized demands. Achieve cutting, creasing, and grooving in one step… Diverse cutting processes are at your disposal.
☷
Fully Automatic Tool Setting
Equipped with fully automatic tool calibration, it easily adjusts cutting depth and creasing depth automatically—ensuring more precise cuts without damaging the worktable and delivering cleaner, more refined creases.
☷
Powerful Drive with Advanced Control System
Equipped with a self-developed embedded M7 EtherCAT version, the motion control cycle is reduced to just 0.0001 seconds, achieving cutting speeds of up to 2 meters per second.
☷
Precision and Stability
With a self-developed anti-vibration optimization algorithm, modular integrated machine body, and precision-ground transmission system, the suction power is enhanced by over three times—everything is designed to ensure more accurate cutting.
Application Scenarios
JWEI SG1625 Flatbed Cutter is suitable for color box factories, corrugated packaging plants, handicraft manufacturers, etc., and can cut various materials such as cardboard, greyboard, corrugated paper, honeycomb board, and foam.
Cardboard

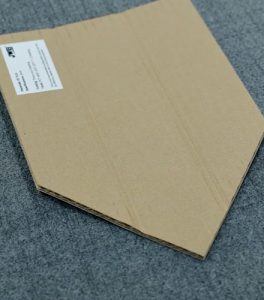

Corrugated board

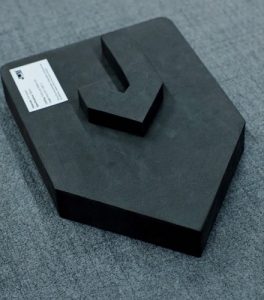

EVA foam

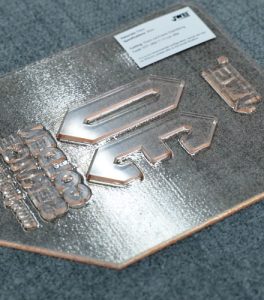

Flex plate
Features
Recommended Configuration
Electric oscillating Tool
Equipped with a high-frequency Maxon motor, reaching speeds up to 18,000 RPM, and featuring specially made tungsten steel hardened blades, it easily handles cutting various harder and thicker materials (such as corrugated cardboard, honeycomb cardboard, KT board, and foam board) with fast speed and smooth, neat edges.
Universal Cutting Tool
Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.
Creasing Wheel Tool
Four sets of creasing wheels with different widths are available, allowing for perfect creasing on various corrugated cardboard and cardstock; optional PVC creasing wheels are available for PVC creasing.
Ethernet Transmission Port
Data transmission is flexible and stable, with enhanced automation scalability; it supports remote upgrades and maintenance, as well as machine control and file access within a local area network (LAN).
Safety Protection
The safety collision design is simple and elegant, featuring an internal infrared light grid device that is highly responsive, ensuring the personal safety of operators and the secure operation of the machine.
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.
Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
Parametera
Description
Model
SG1625
Multi-functional Tool Head
2 Tool heads
3 Tool heads
Tools
Multi-functional Tool Head Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing, drawing, router and other functions in one, optional ATC module
Tools
Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools, etc.
Fastest speed
2000mm/s *
Max. Cutting Thickness
50mm *
Repeat Precision
＜0.05mm *
Cutting Materials
ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive,Cardboard, corrugated, greyboard, PVC/PET, EPE/EVA, hollow sheet, honeycomb panel, flexo, etc.
Material Fixation Mode
Vacuum absorption
Software resolution
0.025、0.01、0.1 optional
Transmission Mode
Ethernet port
Drive System
Bus controller, advanced servo system, imported linear guide rail, lead screws, grinding level 0 backlash helical teeth
Instruction system
HP-GL compatible format
Machine Power
12kW
14kW
Rated Voltage
380V±10%
Effective Cutting Size (WxL)
1600mm×2500mm
1600mm×1200mm
Machine Size (WxLxH)
2570mm×3380mm×1415mm
2570mm×2080mm×1415mm
Note: * will be determined based on the specific materials in the actual application scenario.
